ARIS Explorer 3000:

Full manual for ARIS Explorere sonars, here

Simple connection (Windows+ARISCOPE)

  1. Set-up the sonar and the cable connections as indicated in the Setting Up the Explorer section in the manual.

  2. If the sonar is not detected by the ARISCOPE software, please adjust the network settings as follows (see images below for reference):

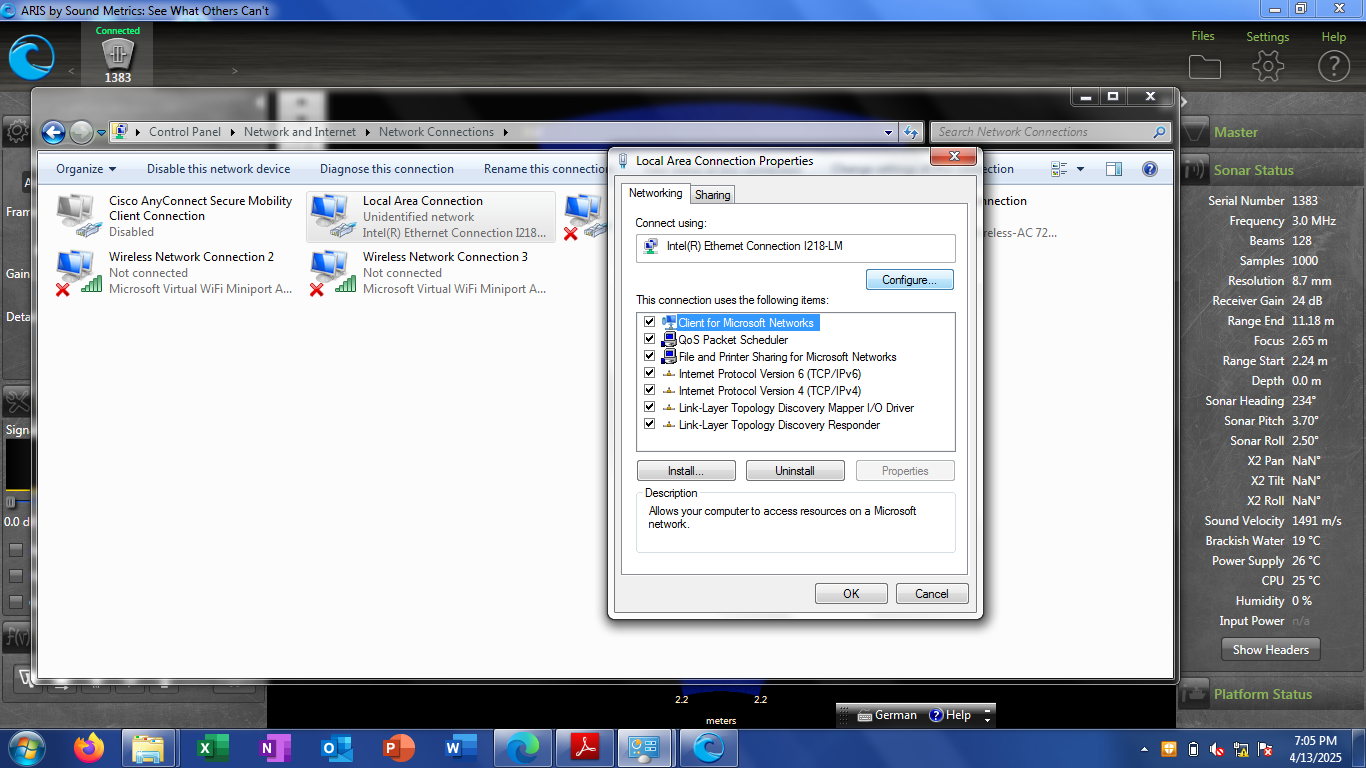

    1. Go to Control Panel > Network and Internet > Network Connections and open the Properties of your LAN connection.
    2. Go into the Configure option and in the Advanced tab, set Energy Efficient Ethernet as Off.
    3. Go into the Power Management tab and disable the option Allow the computer to turn off this device to save power.

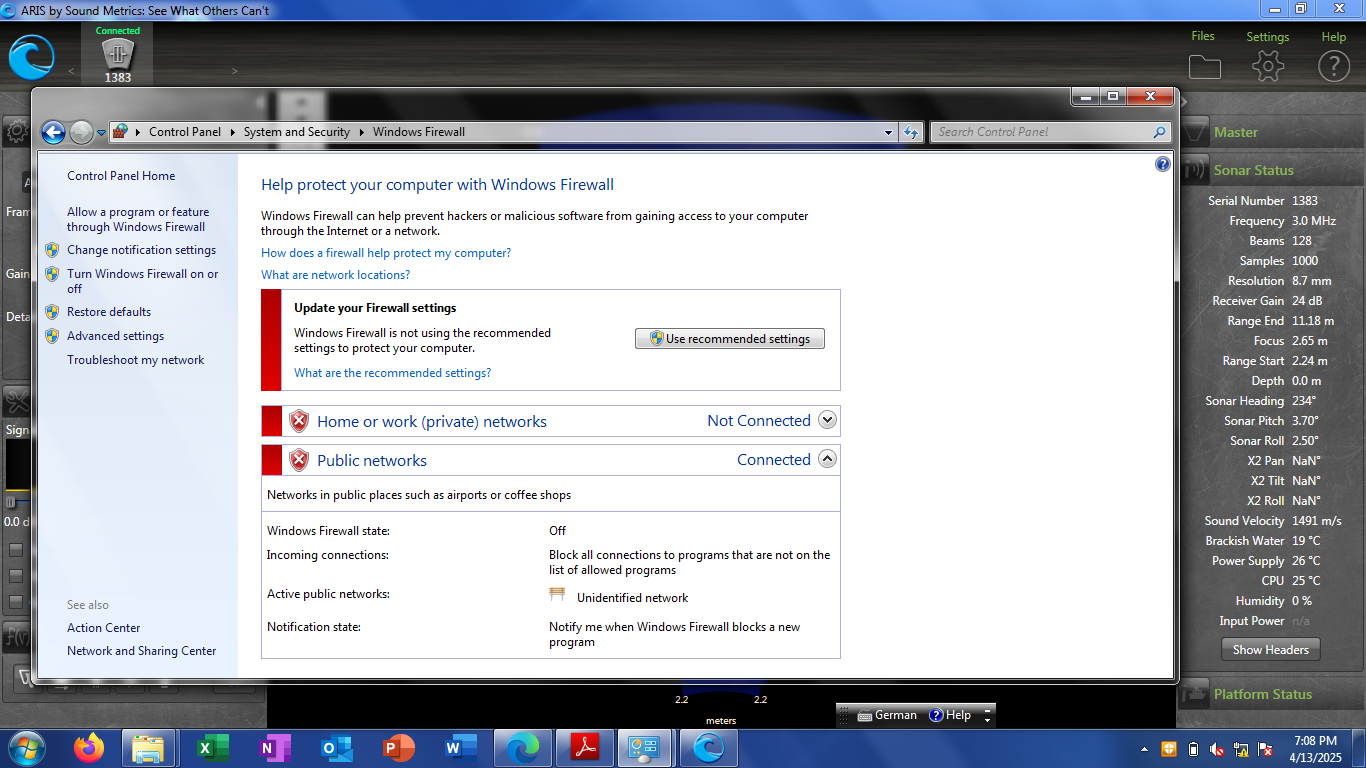

    4. In the section Control Panel > System and Security > Windows Firewall disable the firewall. (Note: Be aware of this when you resume normal work on your PC).
Image 1 Image 2 Image 3 Image 4

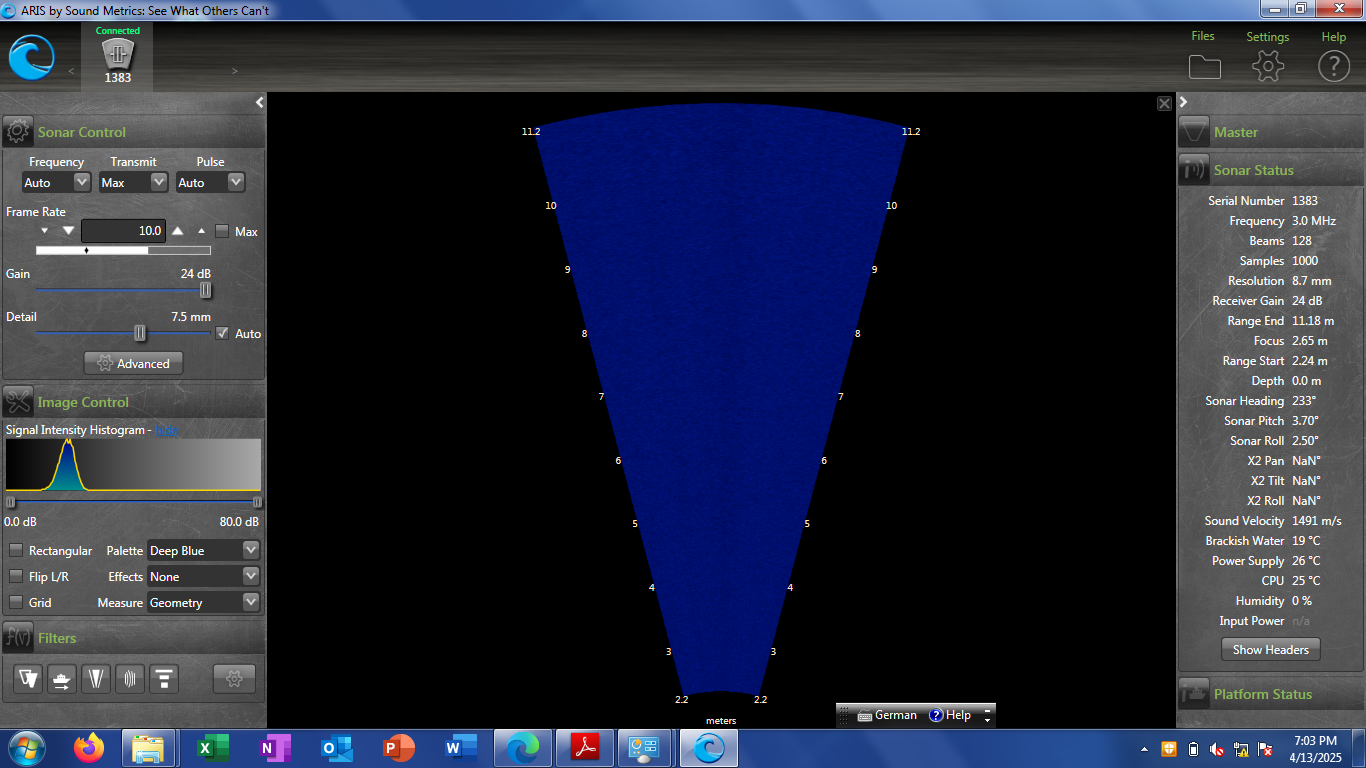

The ARISCOPE GUI looks similar to this:

ARISCOPE GUI

ROS 1 Data

Data or bagfiles acquired under ROS 1 have the following messages and topics.

ROS1 Topic ROS 1 Msg Type Comment
/soundmetrics_aris3000/cartesian sensor_msgs/Image See ROS docs for more info
/soundmetrics_aris3000/polar sensor_msgs/Image See ROS docs for more info
/soundmetrics_aris3000/sonar_info cola2_msgs/SonarInfo Propietary msg from MOPRH project, need to investigate
